Charging Cables
- Insert the communication cable.
- Insert and rotate the charge cable quick connectors clockwise 180˚ to lock them onto the Quick Connector Locking Post on the charger.
- The connection process is complete when all three cables are connected to the charger.
Locking Power Cord
Pull back on the red tab on the side of the connector to release/remove the power cord from the charger’s power socket.

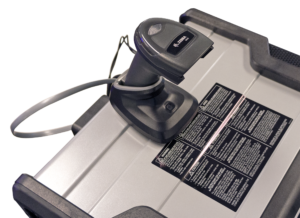

Wireless Barcode Scanner Cable
Insert the RJ50 connector in the bottom of the scanner base. Then use the screws on the DB9 connector to secure the cable from the dock to the charger.
